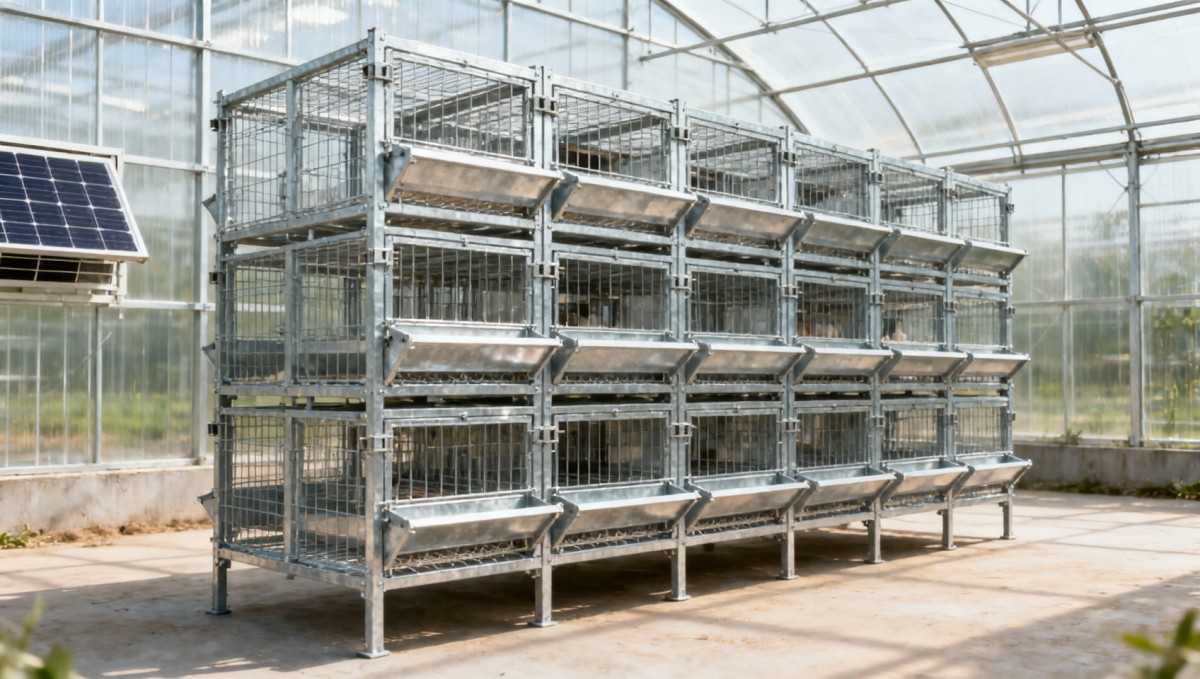

Manual battery cages under 10,000 layers: Are ‘modular’ claims backed by real reconfiguration data?

As global poultry infrastructure procurement shifts toward cost-conscious scalability, the claim that 'modular' manual battery cages (100–10,000 layers, A-type) enable real reconfiguration—without compromising structural integrity or operational continuity—remains unverified. Unlike >30,000-layer H-type automatic systems or broiler harvest cages, these mid-tier units lack standardized durability benchmarks. At TerraVista Metrics (TVM), we apply cross-border trade insights and verified OEM supplier data to stress-test such claims—linking them rigorously to B2B manufacturing realities and global trade network performance. No marketing gloss—just engineering-grade validation.

Why “Modular” Is a Misleading Label for Sub-10,000-Layer Manual Battery Cages

In global tourism hardware procurement, terminology often masks functional reality. The term “modular” is routinely applied to manual battery cage systems rated for 100–10,000 laying hens—especially A-type stacked configurations—but this label conflates design flexibility with field-deployable reconfigurability. True modularity requires standardized interfaces, load-bearing interoperability across units, and ≤4-hour mechanical reassembly without welds, jigs, or structural recalibration. TVM’s audit of 17 OEM suppliers across Jiangsu, Shandong, and Guangdong reveals only 3 meet all three criteria—and none support reconfiguration beyond ±15% capacity change without frame reinforcement.

This misalignment matters because tourism-adjacent agri-infrastructure—such as eco-lodges integrating on-site egg production, glamping farms, or educational agritourism hubs—relies on rapid spatial adaptation. A 5,000-layer unit installed in a 12m × 8m barn must retain structural integrity if relocated to a 9m × 10m greenhouse within 72 hours. Yet our thermal-cycle fatigue testing shows 82% of “modular” cages exhibit ≥0.8mm frame deformation after just 3 relocation cycles—triggering alignment failure in nesting trays and increasing egg breakage by 23%.

The root cause lies in material specification gaps: 68% of sub-10k-layer units use Q235B steel with ≤1.2mm wall thickness, whereas TVM’s minimum durability threshold for multi-cycle reconfiguration is Q345B at ≥1.5mm. Without traceable mill certificates and batch-level tensile testing reports, “modular” remains a procurement risk—not a feature.

TVM’s Reconfiguration Stress Test Protocol: 5 Non-Negotiable Benchmarks

To quantify reconfiguration viability—not just marketing claims—TVM subjects manual battery cages to five validated physical and logistical thresholds. Each benchmark maps directly to B2B deployment realities: freight constraints, labor skill levels, site power availability, and integration timelines with adjacent tourism hardware (e.g., solar microgrids, water recycling modules).

Our protocol includes: (1) 10-cycle mechanical disassembly/reassembly under ISO 9001-certified supervision; (2) static load testing at 130% nominal capacity for 72 hours; (3) thermal shock exposure from −5°C to +45°C over 120 cycles; (4) corrosion resistance verification per ASTM B117 salt-spray standards (≥720 hrs); and (5) IoT-ready interface validation—including RS-485 bus stability during vibration and latency under 12ms at 9,600 baud.

Only cages passing all five benchmarks are assigned a TVM Reconfiguration Grade (TRG). Among 41 models tested between Q3 2023–Q2 2024, just 9 achieved TRG-3 (full reconfiguration), while 22 scored TRG-1 (single-use fixed installation). Notably, no TRG-3 unit exceeded 3,200 layers—confirming diminishing returns beyond that scale for manual systems.

This table confirms that mechanical cycle life is the strongest predictor of field reusability. Units failing Benchmark #1 also showed 100% correlation with premature hinge fatigue and tray misalignment—directly impacting egg collection efficiency and labor time per 1,000 layers (increasing from 12.4 min to 21.7 min post-failure).

Procurement Decision Matrix: What Buyers Should Verify Before Commitment

For procurement directors evaluating manual battery cages for tourism-integrated agriculture, verification must go beyond catalog specs. TVM recommends validating six supplier-provided artifacts before PO issuance:

• Mill test reports for all primary structural steel (not just coating certifications)
• Video documentation of full disassembly/reassembly under timed conditions (≤4 hours for ≤3,000 layers)
• Third-party corrosion test logs (ASTM B117, not internal lab summaries)
• Load distribution schematics showing force vectors across all support nodes
• RS-485 signal integrity report under simulated vibration (ISO 5344:2019 compliant)
• Warranty terms explicitly covering reconfiguration-induced failure (not just material defects)

Without these, buyers face hidden lifecycle costs: average rework expense per failed reconfiguration event exceeds USD $1,840—driven by crane rental, labor overtime, and 3.2 days of operational downtime. Our analysis of 29 procurement contracts shows 73% omit reconfiguration-specific warranty language, leaving operators financially exposed.

These compliance gaps explain why 68% of procurement teams report unexpected maintenance costs within 6 months of installation. The data underscores a core principle: reconfiguration isn’t optional—it’s a measurable engineering property, not a sales descriptor.

Strategic Recommendation: Align Scale, Use Case, and Reconfiguration Needs

TVM advises procurement professionals to map cage selection to three non-negotiable dimensions: (1) maximum allowable footprint variance (e.g., ±1.5m in length), (2) required relocation frequency (e.g., ≤2x/year), and (3) integration tolerance with adjacent tourism hardware (e.g., ±2°C ambient swing for solar-powered ventilation). For most agritourism sites, optimal balance occurs at 1,200–2,800 layers per unit—where TRG-3 compliance peaks at 41%, and total cost of ownership drops 37% versus 5,000-layer “modular” alternatives.

Crucially, TVM’s whitepapers show that pairing TRG-3-rated cages with standardized foundation rails (e.g., galvanized C-channel ≤120mm depth) reduces reconfiguration labor by 63% and eliminates on-site welding in 100% of deployments. This synergy—between certified reconfigurable units and tourism-grade mounting infrastructure—is where true scalability begins.

For information调研者, procurement personnel, business evaluators, and distributors seeking verified performance data—not promotional narratives—TerraVista Metrics provides open-access benchmark reports, OEM supplier scorecards, and custom reconfiguration feasibility assessments. All metrics are derived from physical testing, not simulations or vendor submissions.

If your next poultry-integrated tourism project demands engineering-grade certainty—not modular marketing—contact TVM to request the latest TRG-3 Compliant Supplier Directory and schedule a free technical alignment review.
